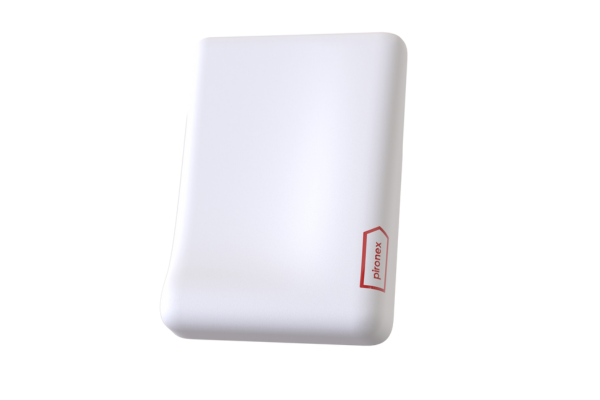

wM-Bus-Gateway-Batt
BATTERY-OPERATED
wM-Bus gateway for reading wM-Bus measuring points
The wM-Bus-Gateway-BATT with LTE CAT-M1, CAT-NB1 and CAT-NB2 enables reliable connectivity in smart meter and industrial environments. The micro SIM card holder and alternative eSIM allow for flexible selection of the network operator.
Meter data is securely collected and forwarded in accordance with standards via the integrated wM-Bus interface and the OMS protocol. An integrated reed contact activates the device when the housing is closed, and attempts at tampering are prevented by the need for special tools to open it. The gateway can be conveniently configured on site via smartphone using an NFC tag.
Description
The wM-Bus-Gateway-BATT with LTE CAT-M1, CAT-NB1 and CAT-NB2 enables reliable connectivity in smart meter and industrial environments. The micro SIM card holder and alternative eSIM allow for flexible selection of the network operator.
Meter data is securely collected and forwarded in accordance with standards via the integrated wM-Bus interface and the OMS protocol. An integrated reed contact activates the device when the housing is closed, and attempts at tampering are prevented by the need for special tools to open it. The gateway can be conveniently configured on site via smartphone using an NFC tag.
The MQTT protocol is used for data transmission to ensure secure data transfer. For quick analysis and convenient visualisation of your data, you can use our IoT portal https://pironex-iot.com/.
Benefits
Applications
What is special?
Technical data
Basic information
|
Supply voltage |
3V-3.6V Battery |
|
Temperature range |
-20°C to +60 °C |
|
Processor |
High-performance microprocessor |
Interfaces
|
Radio |
LTE CAT-M1; LTE CAT-NB1; LTE CAT-NB2 |
|
Measurement/device interfaces |
wM-Bus / OMS |
|
Communication |
MQTT IoT-Portal Interface |
Further properties
|
Sensors |
Battery charge status |
|
SIM |
eSIM-Chip or Micro-SIM |
|
Other |
RTC Watch-Dog-Timer Low Power |
Â
Areas of application
Place of use
- Indoors
- Protected outdoor areas
Target group
- Metering service provider
- Landlords
Function
Data sheet
